PLURAFIT throttle chamber
overview:
Please request
0plus 19% VAT plus Shippment
incl. VAT. plus Shippment
The throttle pit is installed behind the rainwater attenuation filter pits (retention systems). Its throttle outflow is the maximum volume flow which may be supplied to the drainage equipment.

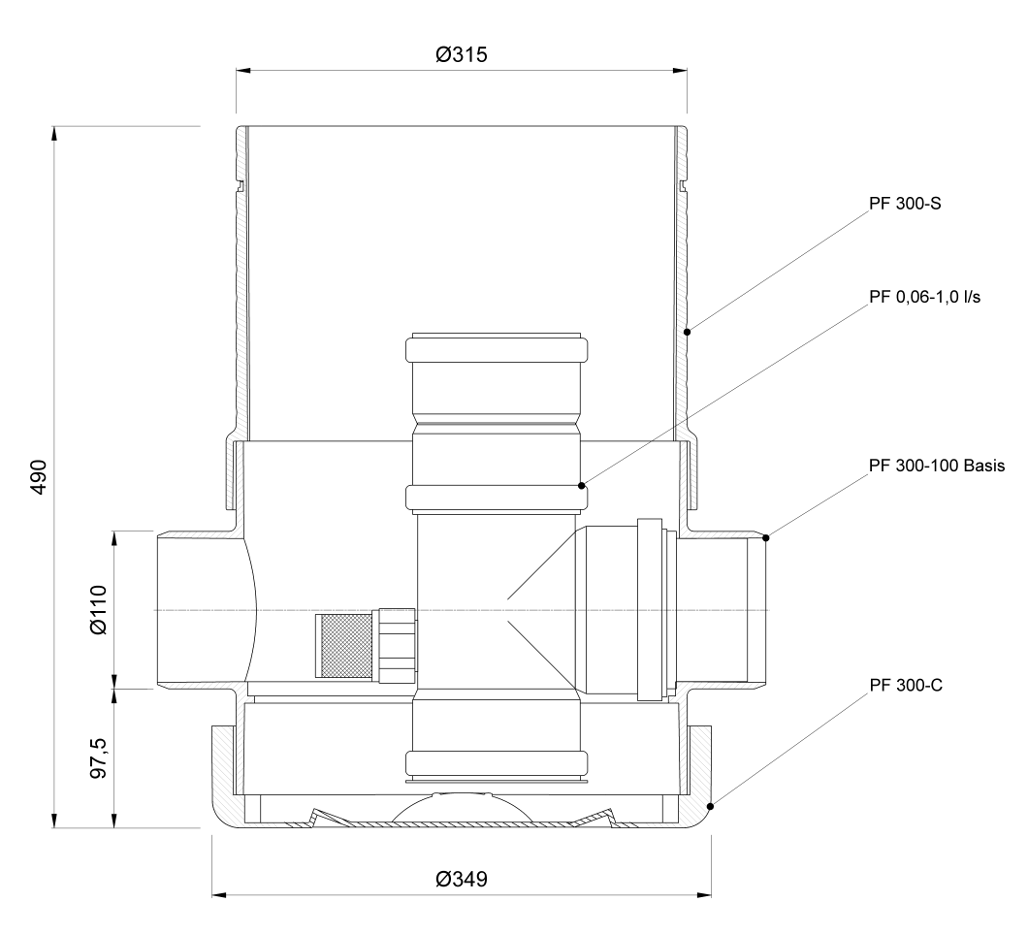

Therefore, the throttle insert PF 0.06 to 1.0 l/s is mounted in the throttle pit. The throttle pit enables inspection and maintenance of the throttle unit.
The maximum runoff / flow rate value is based on the maximum filling level (see Table):
max. filling level
Aperture 0,6m 0,8m 1,0m 1,2m
Nr. 1 0,06 l/s 0,07 l/s 0,08 l/s 0,09 l/s
Nr. 2 0,11 l/s 0,12 l/s 0,14 l/s 0,15 l/s
Nr. 3 0,17 l/s 0,19 l/s 0,22 l/s 0,24 l/s
Nr. 4 0,24 l/s 0,28 l/s 0,31 l/s 0,34 l/s
Nr. 5 0,33 l/s 0,38 l/s 0,42 l/s 0,46 l/s
no aperture 0,67 l/s 0,77 l/s 0,86 l/s 1,00 l/s
