Stainless steel discharge throttle DN300 up to 250 L/s
overview:
- special sturdy design
- easy installation
- progressive outflow selectable up to 250 l/s
Please request
0plus 19% VAT plus Shippment
incl. VAT. plus Shippment
The progressive INTEWA throttles ensure that the maximum permissible water quantity flows constantly regardless of the water level. As a result, the retention tank can be up to about 30% smaller size than with fixed outflow throttles.
Order Note:

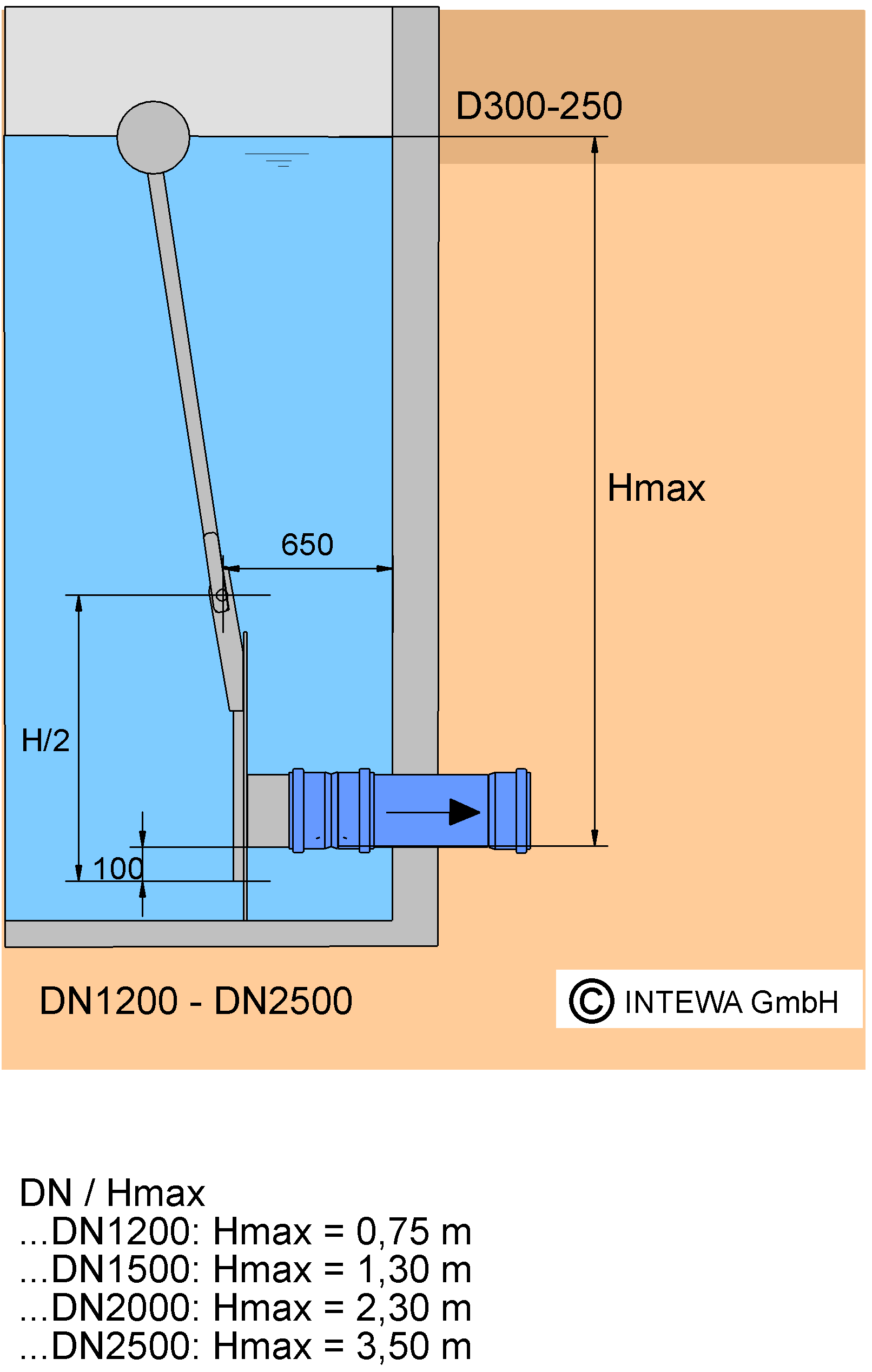

The flow panel is specially designed as per the desired throttle outflow. The throttle outflow V and the height H must be specified in the order (see Technical Drawing). The standard delivery time is 3 weeks from the approval of drawing.
Maintenance Note:
The preliminary filter, hood opening and the float clearance will be inspected twice a year.
Shipping:
customs tariff number: 84818019
