Stainless steel discharge throttle DN250 up to 180 L/s


overview:

  • up to 30 % lesser retention volume = cost saving
  • special sturdy design
  • easy installation
  • progressive outflow selectable up to 180 l/s
Code: D250-180
Productnumber: 800026
EAN Code: 4251173102176

Please request

0
Spedition Palette 120x80 cm, ab 125,00 €
3.078,40 €
plus 19% VAT plus Shippment
3.663,30 €
incl. VAT. plus Shippment
- 0%
3.663,30 €
Pieces
ON REQUEST

The progressive INTEWA throttles ensure that the maximum permissible water quantity flows constantly regardless of the water level. As a result, the retention tank can be up to about 30% smaller size than with fixed outflow throttles.

User note
These outflow throttles can be installed on the outflow side of the retention system for commercial plants systems. For this purpose the provided socket is positioned on the outflow pipe at site (KG pointing ends). The adjustable feet of the throttle supports the weight of the tank base.

Order note

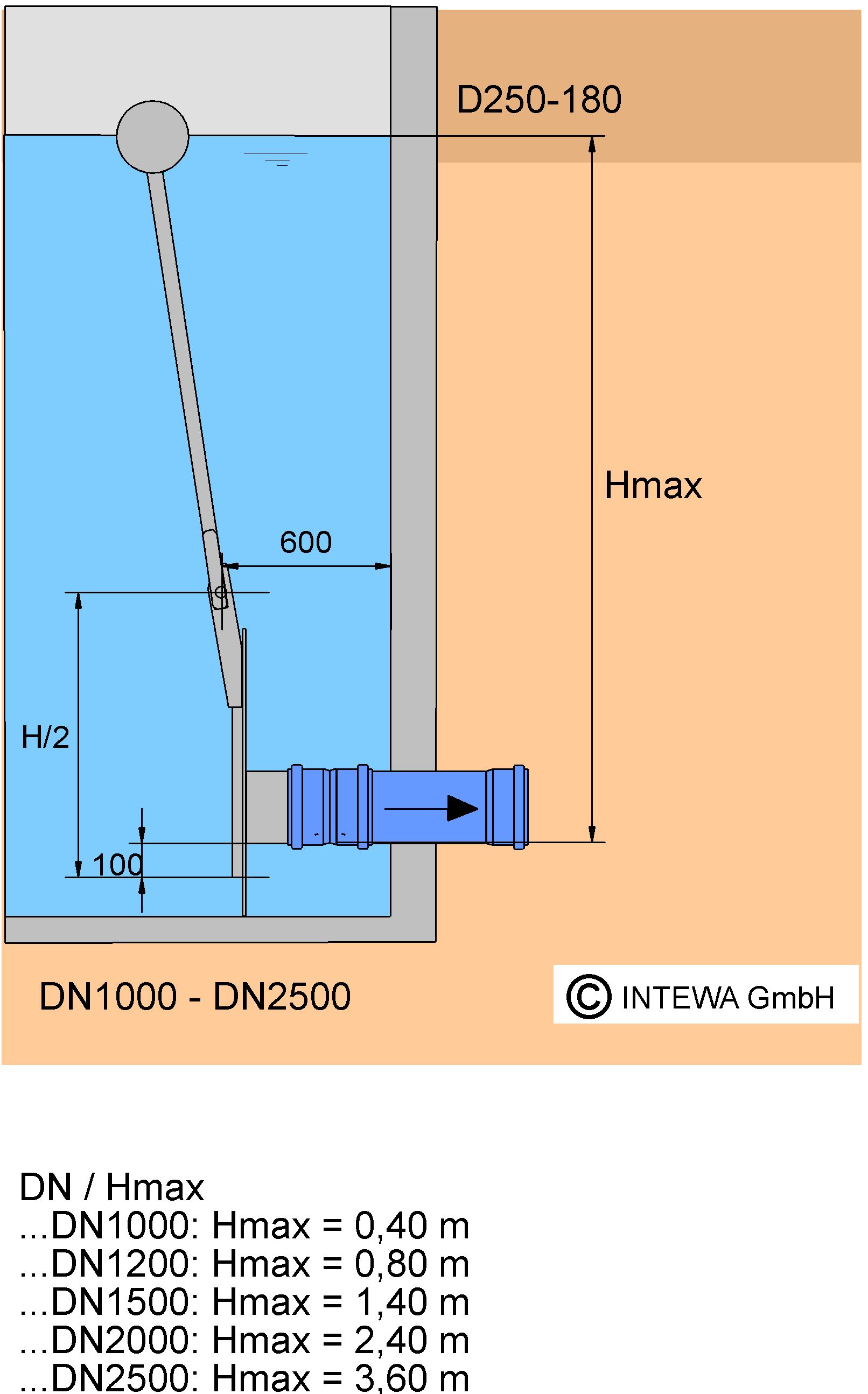

The flow panel is specially designed as per the desired throttle outflow. The throttle outflow V and the height H must be specified in the order (see Technical Drawing). The standard delivery time is 3 weeks from the approval of drawing.

Maintenance Note:
The preliminary filter, hood opening and the float clearance will be inspected twice a year.
